Grid Marks Stuck on Your Acrylic After Peeling Mesh Film? Here's Why It Happens and How Guangdayuan Prevents It

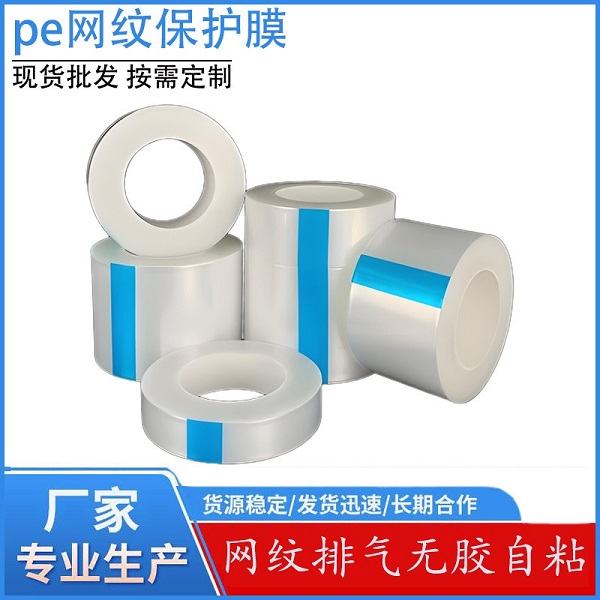

Product Characteristic
Standard PE mesh protective film often leaves visible grid patterns on soft surfaces like acrylic, polycarbonate, and high-gloss PMMA. This happens when mesh grooves are too deep or the adhesive layer is too soft, causing plastic deformation under pressure or prolonged storage. Guangdayuan's precision-engineered PE mesh protective film solves this with shallow micro-structure mesh rolls and a balanced adhesive hardness formula. Developed through our partnership with Harbin Institute of Technology and using premium raw materials from Toray and Toyobo, our film ensures rapid air release without transferring any pattern. The result is a completely mark-free surface after peeling.
Full Specification Parameters
Guangdayuan's PE mesh protective film offers the following technical specifications: thickness range from 40μm to 120μm, width up to 2000mm, and mesh depth precisely controlled below 15μm to prevent pattern transfer. Adhesion levels are customizable from low (3g/in) for delicate acrylic up to high (300g/in) for rougher surfaces. Operating temperature spans -10°C to 60°C. Tensile strength exceeds 25MPa, with elongation at break above 300%. The film passes ISO9001 quality standards and is available in clear, blue, or white base colors. Roll lengths can be customized from 200m to 1000m based on customer requirements.Product Protection Purpose & Article Summary
This PE mesh protective film is specifically designed to protect sensitive acrylic panels, polycarbonate sheets, high-gloss PMMA displays, and coated glass during fabrication, storage, and transport. Its primary purpose is to prevent scratches, dust contamination, and surface abrasion while allowing trapped air to escape during application. The shallow mesh design enables bubble-free lamination without pressing or rolling, saving labor time. Unlike ordinary mesh films that damage soft substrates, Guangdayuan's version maintains pristine surface quality from the moment of application through final removal — even after weeks of storage or exposure to temperature changes.
Grid pattern transfer is a common failure of low-quality mesh films on soft acrylic surfaces. Guangdayuan solves this with shallow micro-structure design and optimized adhesive hardness. Backed by 20 years of expertise, ISO9001 certification, and a 16,000㎡ automated facility, we guarantee mark-free protection. We offer free sample testing and technical support for your specific acrylic application. Contact us today at 0755-28171981 or 18928456898 to eliminate grid marks and protect your high-value surfaces.
